We are launching a new remote I/O terminal compatible with CC-Link IE TSN.

●Horizontal design for space-saving installation
●Spring-lock terminal blocks for easy wiring
●Unit mounting: DIN 35mm rail / Stopper-free

【Communication Line】RJ45 Modular Jack supports flexible wiring configurations: star, line, and ring topologies.
Enables wiring layouts that match equipment and device arrangements.

【Built-in Common Terminal】Features color-coded common terminals.
Whether using a 2-wire or 3-wire system, this single unit handles it all.

【Simple Wiring】Features a reliable spring-lock crimp connection system.
When using solid wires or Ferrule terminals, wiring is quick and easy--simply insert the wire.
No loosening due to vibration means no retightening is required, achieving maintenance-free operation.
After wiring, you can perform a conductivity check using the holes for testing.

Online store

INPUT 32points: TSN-32X-MT1XR https://togi-ec.com/products/tsn-32x-mt1xr

OUTPUT 32points: TSN-32D-MT1XR https://togi-ec.com/products/tsn-32d-mt1xr

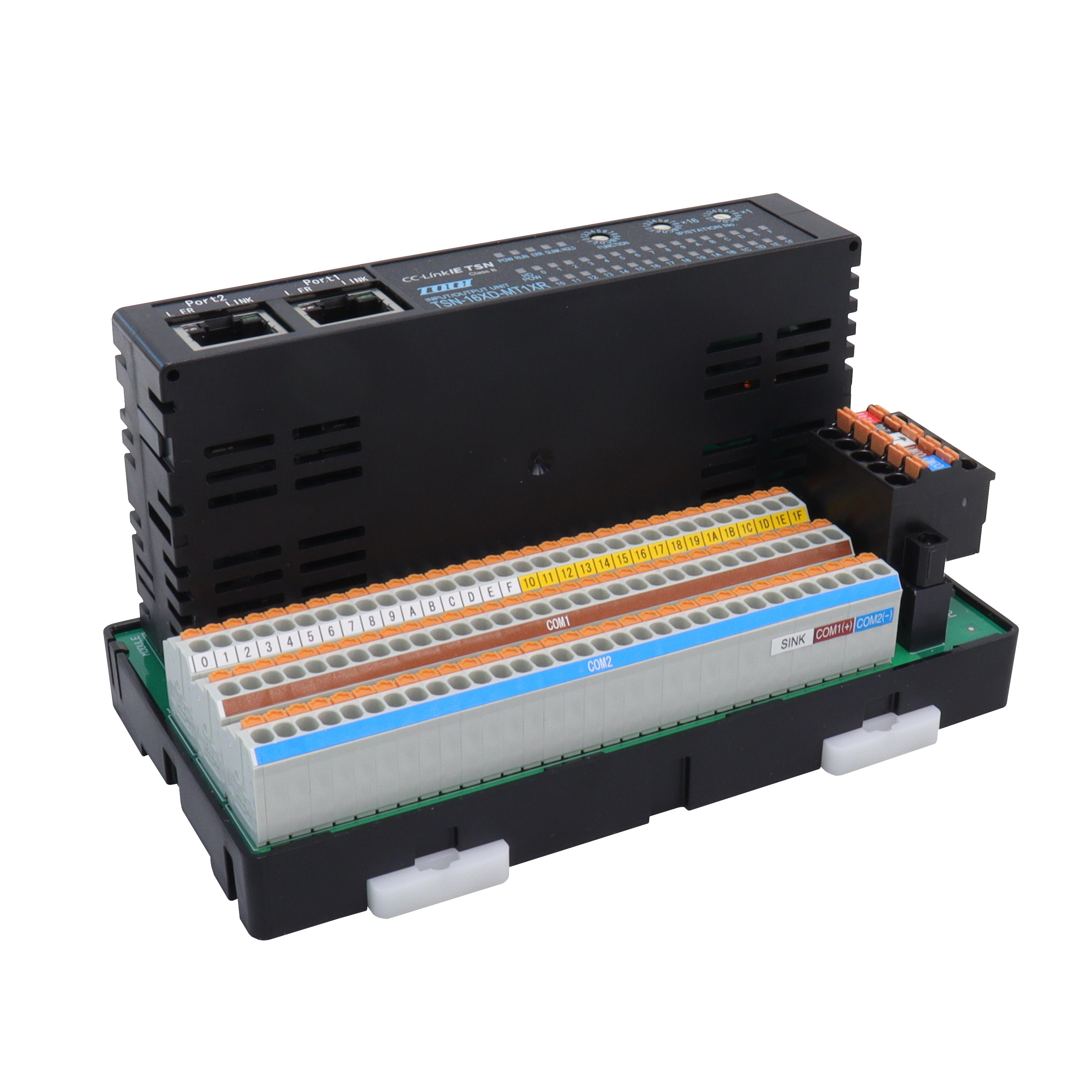

IN16/OUT16 points: TSN-16XD-MT1XR https://togi-ec.com/products/tsn-16xd-mt1xr
